Official global spare parts and service center for Manfrotto
Finding and selecting your part is as easy as 1-2-3
There are no variations of this model,
please skip to step 2 below.

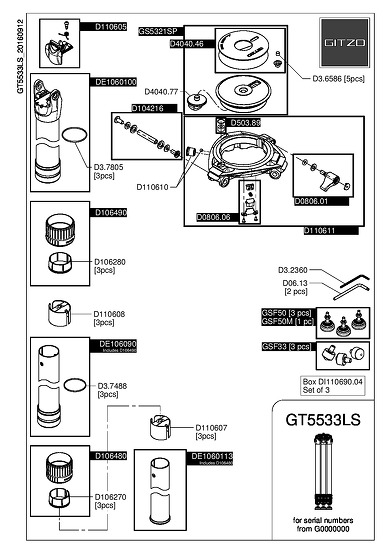

Identify the part using the diagram
Hover or tap the image to zoom in.
Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.
Add accessories to your basket.
1 Model Number
3 Add The Part To Your Basket
Available Parts. Type the part number below in order to filter this list:
$30.15 (Ex VAT)
D0806.06
D0806.06. Assembly Button
$13.92 (Ex VAT)
D503.89
D503.89. Assembly Spirit Bubble
$33.66 (Ex VAT)
D106490
D106490. Locking Ring
$14.01 (Ex VAT)
D110610
D110610. Easy Link Bushing
$15.28 (Ex VAT)
D3.7805
D3.7805. Ring D.40 set of 3
$22.21 (Ex VAT)
D104216
D104216. Spacer
$45.78 (Ex VAT)
D4040.77
D4040.77. Hook, replaces G4040.77
$11.06 (Ex VAT)
D3.6586
D3.6586. Grub Screw Set Of 5
$28.28 (Ex VAT)
D4040.46
D4040.46. Grub Screw
$237.21 (Ex VAT)
DE1060100
DE1060100. Tube
$53.99 (Ex VAT)
D0806.01
D0806.01. Locking knob
$285.00 (Ex VAT)
D110611
D110611. S5 Systematic Spider
$26.64 (Ex VAT)
D106280
D106280. Cone Collet D.37 set of 3
$8.41 (Ex VAT)
D3.2360
D3.2360. Wrench
$159.14 (Ex VAT)
DE1060113
DE1060113. Tube
$15.05 (Ex VAT)
D110607
D110607. Hose Clamp D.32,9, Set of 3
$25.07 (Ex VAT)
D106270
D106270. Cone Collet D.32,9 set of 3
$31.56 (Ex VAT)
D106480
D106480. Locking Ring
$14.80 (Ex VAT)
D3.7488
D3.7488. Ring D.37 set of 3
$190.43 (Ex VAT)
DE106090
DE106090. Assembly Tube
$18.93 (Ex VAT)
D110608
D110608. Hose Clamp D,37 set of 3
$43.98 (Ex VAT)
D110605
D110605. Asm square, series 5
$16.49 (Ex VAT)
D06.13
D06.13. Wrench Torx Set Of 2
Unavailable
D1410.JP
D1410.JP. Foot ( Set Of 3 )
$226.50 (Ex VAT)
GS5321SP
GS5321SP. Systematic Flat Top Plate, Series 5
$49.94 (Ex VAT)
GSF50M
GSF50M. Big foot 50mm, 1pc
$71.19 (Ex VAT)
GSF50
GSF50. Big foot 50mm, 3pcs
$48.44 (Ex VAT)
GSF33
GSF33. Interchageable rubber foot 33mm, 3pcs
$124.50 (Ex VAT)
G1220.129LB3
G1220.129LB3. Long Spiked Foot ( Set Of 3 )
$77.45 (Ex VAT)
GSF30S
GSF30S. Short spike + rubber foot 30mm, 3pcs
$75.00 (Ex VAT)
GS5030VSF
GS5030VSF. Spiked Foot ( Set Of 3 )
4 Accessories
