Official global spare parts and service center for Manfrotto
Finding and selecting your part is as easy as 1-2-3
There are no variations of this model,
please skip to step 2 below.

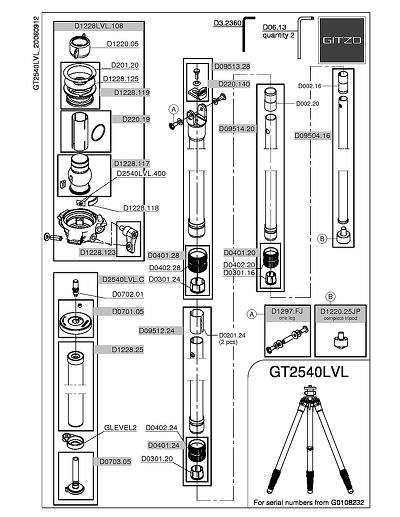

Identify the part using the diagram
Hover or tap the image to zoom in.
Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.
Add accessories to your basket.
1 Model Number
3 Add The Part To Your Basket
Available Parts. Type the part number below in order to filter this list:
$360.00 (Ex VAT)
D1228LVL.108
D0801.209. Ass Main Casting
$9.73 (Ex VAT)
D0201.24
D0201.24. Hose Clamp
$11.12 (Ex VAT)
D0301.16
D0301.16. Cone Collett
$8.75 (Ex VAT)
D0402.20
D0402.20. Knob Cover
$25.02 (Ex VAT)
D0401.20
D0401.20. Assembly Ring Nut+knob Cover
$104.82 (Ex VAT)
D09514.20
D09526.20. Assembly Tube
$21.34 (Ex VAT)
D220.140
D220.140. Lash Set
$183.36 (Ex VAT)
D09513.28
D09513.28. Assembly Leg
$11.20 (Ex VAT)
D0301.20
D0301.20. Cone Collett
$8.45 (Ex VAT)
D002.16
D002.16. Hose Clamp
$8.08 (Ex VAT)
D002.20
D002.20. Hose Clamp
$42.93 (Ex VAT)
D1220.25JP
D110009-3. Foot (Set of 3)
$24.01 (Ex VAT)
D1297.FJ
D1297.FJ. Complete Leg Fixing
$88.58 (Ex VAT)
D09504.16
D09504.17. Assembly Tube
$25.85 (Ex VAT)
D0401.24
D0401.24. Assembly Ring Nut and Cover
Unavailable
D0402.24
D0402.24. Knob Cover. DISCONTINUED. PLEASE ORDER D0401.24
$57.57 (Ex VAT)
D1228.123
D1228.123. Ass Knob
$21.15 (Ex VAT)
D1228.118
D1228.118. Ass Shoe
$10.07 (Ex VAT)
D2540LVL.400
D2540LVL.400. Assembly Label
$11.88 (Ex VAT)
D220.19
D220.19. Centre Support Bush
$59.12 (Ex VAT)
D1228.119
D1228.119. Ass Ball Covering
$7.68 (Ex VAT)
D1228.125
D1228.125. Ass Protection
$17.18 (Ex VAT)
D201.20
D201.20. Ass Washer
$33.72 (Ex VAT)
D1220.05
D1220.05. Centre Column Locking Ring
Unavailable
D2540LVL.C
$17.08 (Ex VAT)
D0702.01
D0702.01. Insert, replaces G0702.01
$97.97 (Ex VAT)
D09512.24
D09512.24. Assembly Tube
$11.24 (Ex VAT)
D0301.24
D0301.24. Cone Collett
Unavailable
D0402.28
D0402.28. Knob Cover. DISCONTINUED. PLEASE ORDER D0401.28
$26.25 (Ex VAT)
D0401.28
D0401.28. Assembly Ring Nut and Cover
$53.93 (Ex VAT)
D0703.05
D0703.05. Assembly Hook
$15.20 (Ex VAT)
GLEVEL2
GLEVEL2. Levelling Spirit Level
$149.17 (Ex VAT)
D1228.25
D1228.25. Assembly Column
$45.10 (Ex VAT)
D0701.05
D0701.05. Assembly Disk
$31.41 (Ex VAT)
D1220.JP
D1220.JP. Foot. Set Of 3
$75.00 (Ex VAT)
GS5030VSF
GS5030VSF. Spiked Foot ( Set Of 3 )
$71.19 (Ex VAT)
G1220.130B3
GSF50. Big foot 50mm, 3pcs
$124.50 (Ex VAT)
G1220.129LB3
G1220.129LB3. Long Spiked Foot ( Set Of 3 )
$77.45 (Ex VAT)
G1220.129B3
GSF30S. Short spike + rubber foot 30mm, 3pcs
$59.99 (Ex VAT)
G1586B3
G1586B3. Location Shoe ( Set Of 3 )
4 Accessories
