Official global spare parts and service center for Manfrotto
Finding and selecting your part is as easy as 1-2-3
There are no variations of this model,
please skip to step 2 below.

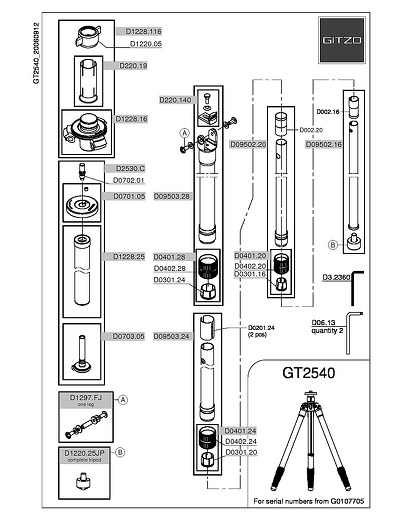

Identify the part using the diagram
Hover or tap the image to zoom in.
Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.
Add accessories to your basket.
1 Model Number
3 Add The Part To Your Basket
Available Parts. Type the part number below in order to filter this list:
$186.00 (Ex VAT)
D1228.116
D1228.116. Centre Support
$9.73 (Ex VAT)
D0201.24
D0201.24. Hose Clamp
$25.85 (Ex VAT)
D0401.24
D0401.24. Assembly Ring Nut and Cover
Unavailable
D0402.24
D0402.24. Knob Cover. DISCONTINUED. PLEASE ORDER D0401.24
$11.20 (Ex VAT)
D0301.20
D0301.20. Cone Collett
$8.45 (Ex VAT)
D002.16
D002.16. Hose Clamp
$8.08 (Ex VAT)
D002.20
D002.20. Hose Clamp
$60.27 (Ex VAT)
D09502.16
D09502.16. Lower Leg
$8.41 (Ex VAT)
D3.2360
D3.2360. Wrench
$16.49 (Ex VAT)
D06.13
D06.13. Wrench Torx Set Of 2
$24.01 (Ex VAT)
D1297.FJ
D1297.FJ. Complete Leg Fixing
$42.93 (Ex VAT)
D1220.25JP
D110009-3. Foot (Set of 3)
$11.12 (Ex VAT)
D0301.16
D0301.16. Cone Collett
$8.75 (Ex VAT)
D0402.20
D0402.20. Knob Cover
$33.72 (Ex VAT)
D1220.05
D1220.05. Centre Column Locking Ring
$11.88 (Ex VAT)
D220.19
D220.19. Centre Support Bush
$160.09 (Ex VAT)
D1228.16
D1228.16. Centre Support
$37.01 (Ex VAT)
D2530
D2530.401. Label *gt2530* Set Of 12
$17.08 (Ex VAT)
D0702.01
D0702.01. Insert, replaces G0702.01
$45.10 (Ex VAT)
D0701.05
D0701.05. Assembly Disk
$149.17 (Ex VAT)
D1228.25
D1228.25. Assembly Column
$53.93 (Ex VAT)
D0703.05
D0703.05. Assembly Hook
$21.34 (Ex VAT)
D220.140
D220.140. Lash Set
$180.24 (Ex VAT)
D09503.28
D09503.28. Assembly Tube
$26.25 (Ex VAT)
D0401.28
D0401.28. Assembly Ring Nut and Cover
Unavailable
D0402.28
D0402.28. Knob Cover. DISCONTINUED. PLEASE ORDER D0401.28
$11.24 (Ex VAT)
D0301.24
D0301.24. Cone Collett
$101.33 (Ex VAT)
D09503.24
D09524.24. Assembly Tube
$84.46 (Ex VAT)
D09502.20
D09502.20. Assembly Tube
$25.02 (Ex VAT)
D0401.20
D0401.20. Assembly Ring Nut+knob Cover
$31.41 (Ex VAT)
D1220.JP
D1220.JP. Foot. Set Of 3
$77.45 (Ex VAT)
G1220.129B3
GSF30S. Short spike + rubber foot 30mm, 3pcs
$124.50 (Ex VAT)
G1220.129LB3
G1220.129LB3. Long Spiked Foot ( Set Of 3 )
$71.19 (Ex VAT)
G1220.130B3
GSF50. Big foot 50mm, 3pcs
$75.00 (Ex VAT)
GS5030VSF
GS5030VSF. Spiked Foot ( Set Of 3 )
$59.99 (Ex VAT)
G1586B3
G1586B3. Location Shoe ( Set Of 3 )
4 Accessories
