475 Spare Replacement Parts
Finding and selecting your part is as easy as 1-2-3
Select your model number from the tabbed list.
Slight variations exist depending on the age of your product.
Identify the part using the diagram
Hover or tap the image to zoom in.
Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.
Add accessories to your basket.
1 Model Number
2 Identify The Part
selected a model variation.

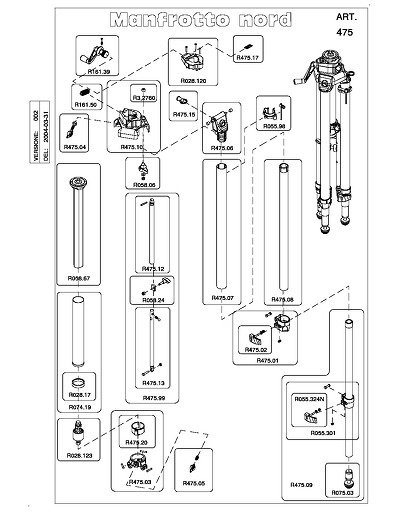

Use this drawing for tripods with a serial number up to A10112164
Hover over or tap the image to zoom, or download the full PDF

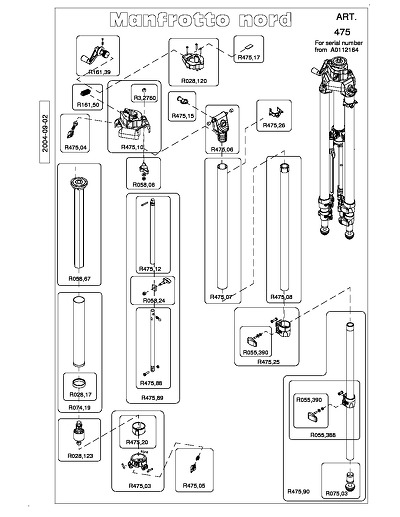

Use this drawing for tripods with a serial number greater than A10112164
Hover over or tap the image to zoom, or download the full PDF
4 Accessories
3 Add The Part To Your Basket
Available Parts. Type the part number below in order to filter this list:
selected a model variation.
$74.78 (Ex VAT)
R161.39
R161,39. Crank Handle
$25.82 (Ex VAT)
R028.120
R028,120. Casting Cover With Screws
Unavailable
R475.17
$18.55 (Ex VAT)
R161.50
R161,50. Rack Gear
$12.23 (Ex VAT)
R475.04
R475,04. Column Lock Knob
$12.62 (Ex VAT)
R3,2760
R3,2760. Ass Bubble
$94.89 (Ex VAT)
R475.10
R475,10. Main Casting With Bubble
$18.96 (Ex VAT)
R475.15
R475,15. Ring For Carrying Strap 475B
$27.40 (Ex VAT)
R475.06
R475,06. Assembly Collar Locking and Bushing
$7.74 (Ex VAT)
R055.98
R055,98. Ass.plastic Wrench
$11.23 (Ex VAT)
R058.06
R058,06. Leg Pivot Holder
Unavailable
R058.67
R058,67. Centre Column
$7.24 (Ex VAT)
R028.17
R028,17. Spider Stop
$30.11 (Ex VAT)
R074.19
R074,19. Column Sleeve + Ring
$11.88 (Ex VAT)
R028.123
R028,123. Column Stopper
$23.50 (Ex VAT)
R475.12
R475,12. Screw
$14.39 (Ex VAT)
R058.24
R058,24. Strut Lock Knob
$31.02 (Ex VAT)
R475.13
R475,13. Tension Bar With Bearing
$43.66 (Ex VAT)
R475.99
R475,99. Ass Tension Rod Complete
$8.82 (Ex VAT)
R475.20
R475,20. Ring
$43.04 (Ex VAT)
R475.03
R475,03. Lower Casting Assy and ring
$9.73 (Ex VAT)
R475.05
R475,05. Knob And Spring. Lower
$40.22 (Ex VAT)
R475.07
R475,07. Ass. Pipe D=35,4
$25.41 (Ex VAT)
R475.08
R475,08. Aluminium Pipe 29,5x1x539
$15.18 (Ex VAT)
R475.02
R055,324N. Lever With Screws
$34.37 (Ex VAT)
R475.01
R475,01. Upper Leg Lock
$15.18 (Ex VAT)
R055.324N
R055,324N. Lever With Screws
$24.58 (Ex VAT)
R055.301
R055,395. Assembly Sleeve
$64.62 (Ex VAT)
R475.09
R475,09. Ass. Tube with foot
$18.44 (Ex VAT)
R075.03
R075,03. Foot for 3036
$13.61 (Ex VAT)
R161,44K
R161,44K. Shim Assembly
$51.00 (Ex VAT)
230
230. Snow Shoes
$9.30 (Ex VAT)
R3,0020
R3,0020. Grub Screws for Centre column Top Disc. Pack Of 5
$12.62 (Ex VAT)
R3,2760
R3,2760. Ass Bubble
$74.78 (Ex VAT)
R161,39
R161,39. Crank Handle
$25.82 (Ex VAT)
R028,120
R028,120. Casting Cover With Screws
Unavailable
R475,17
$18.55 (Ex VAT)
R161,50
R161,50. Rack Gear
$12.23 (Ex VAT)
R475,04
R475,04. Column Lock Knob
$94.89 (Ex VAT)
R475,10
R475,10. Main Casting With Bubble
$18.96 (Ex VAT)
R475,15
R475,15. Ring For Carrying Strap 475B
$27.40 (Ex VAT)
R475,06
R475,06. Assembly Collar Locking and Bushing
$11.23 (Ex VAT)
R058,06
R058,06. Leg Pivot Holder
Unavailable
R058,67
R058,67. Centre Column
$7.24 (Ex VAT)
R028,17
R028,17. Spider Stop
$30.11 (Ex VAT)
R074,19
R074,19. Column Sleeve + Ring
$11.88 (Ex VAT)
R028,123
R028,123. Column Stopper
$23.50 (Ex VAT)
R475,12
R475,12. Screw
$14.39 (Ex VAT)
R058,24
R058,24. Strut Lock Knob
$8.82 (Ex VAT)
R475,20
R475,20. Ring
$43.04 (Ex VAT)
R475,03
R475,03. Lower Casting Assy and ring
$9.73 (Ex VAT)
R475,05
R475,05. Knob And Spring. Lower
$40.22 (Ex VAT)
R475,07
R475,07. Ass. Pipe D=35,4
$25.41 (Ex VAT)
R475,08
R475,08. Aluminium Pipe 29,5x1x539
$18.44 (Ex VAT)
R075,03
R075,03. Foot for 3036
$11.40 (Ex VAT)
R475,26
R475,26. Wrench
$31.02 (Ex VAT)
R475,88
R475,88. Tension Bar
$46.03 (Ex VAT)
R475,89
R475,89. Tension Bar
$17.85 (Ex VAT)
R055,390
R055,534. Assembly Lever
$36.13 (Ex VAT)
R475,25
R475,28. Upper Leg Lock
$24.58 (Ex VAT)
R055,388
R055,395. Assembly Sleeve
$64.62 (Ex VAT)
R475,90
R475,09. Ass. Tube with foot
$13.61 (Ex VAT)
R161,44K
R161,44K. Shim Assembly
$51.00 (Ex VAT)
230
230. Snow Shoes
$9.30 (Ex VAT)
R3,0020
R3,0020. Grub Screws for Centre column Top Disc. Pack Of 5
