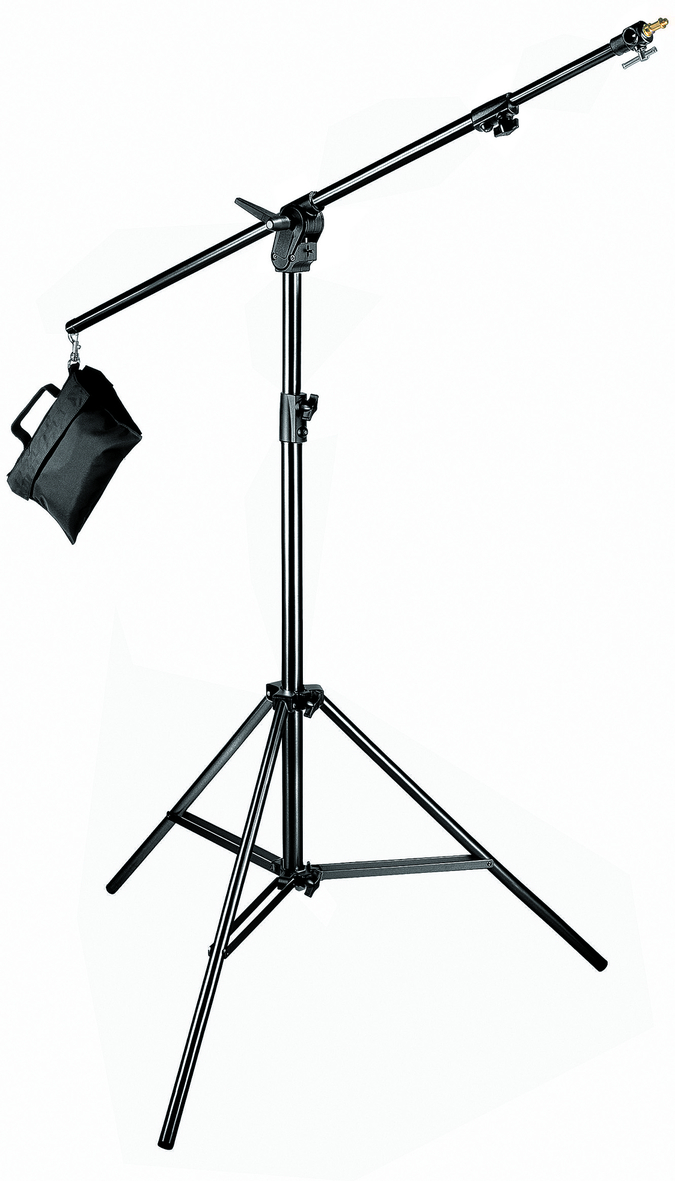

420B Spare Replacement Parts

Image for illustrative purposes only, variations may differ.

Finding and selecting your part is as easy as 1-2-3

Select your model number from the tabbed list.
Slight variations exist depending on the age of your product.

Identify the part using the diagram
Hover or tap the image to zoom in.

Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.

Add accessories to your basket.


2 Identify The Part

Model diagrams show here once you have
selected a model variation.

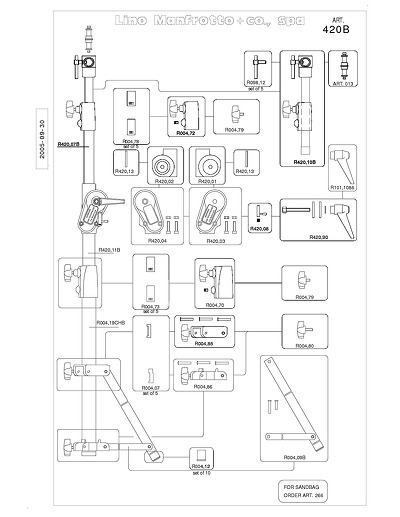

This model is identified by the thread of the upper locking knob R004,79 being M6.

Hover over or tap the image to zoom, or download the full PDF

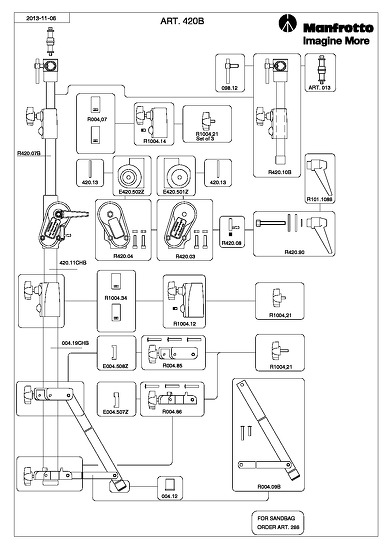

This model is identified by the thread of the upper locking knob R1004,21 being M8

Hover over or tap the image to zoom, or download the full PDF

4 Accessories

3 Add The Part To Your Basket

Available Parts. Type the part number below in order to filter this list:

Parts show here once you have
selected a model variation.

$67.64 (Ex VAT) R420,07B R420,07B. Top Combi Boom Section

$32.39 (Ex VAT) R420,11B R420,11B. Aluminium Tube Black

$63.00 (Ex VAT) R004,19CHB R004,19CHB. Aluminium Tube 35x1x789 Black

$11.88 (Ex VAT) R004,78 R004,78. Brake Shoe for Collar ( Set Of 2 ), replaces E004,578Z

$36.22 (Ex VAT) R004,72 R1004,96. Assembly Sleeve

Unavailable R004,79 R004,80. Locking Screw - USED

$44.67 (Ex VAT) R098,12 R098,12. Ass Lever. ( Pack Of 5 )

$15.00 (Ex VAT) Art. 013 013. Adaptor Spigot

$116.23 (Ex VAT) R420,10B R420,10B. Top Column with collar and Bushing

$31.48 (Ex VAT) R101,1086 R101,1086. Handle. Female

$59.25 (Ex VAT) R420,90 R420,90. Handle Assembly For Lock Joint

$21.46 (Ex VAT) R420,08 R420,08. Safety Lock

$39.50 (Ex VAT) R420,03 R420,03. Right Lock Joint Half Shell

$31.19 (Ex VAT) R420,04 R420,04. Left Lock Joint Half Shell

$18.71 (Ex VAT) R420,13 R420,13. Washer

$17.55 (Ex VAT) R420,01 R420,01. Half Shell

$17.55 (Ex VAT) R420,02 R420,02. Half Shell

Unavailable R004,73 R004,73. Upper Locking Wedge ( Set of 1 + 1 ), replaces E004,573Z

$27.32 (Ex VAT) R004,70 R004,70A. Bottom Collar

Unavailable R004,80 R004,80. Locking Screw - USED

$32.52 (Ex VAT) R004,85 R004,85. Top Spider

$8.41 (Ex VAT) R004,07 R004,07. Brake Shoe ( Set of 1 + 1 ), replaces E004,507Z

$29.28 (Ex VAT) R004,86 R004,86. Bottom Spider with knob&rivets

$30.35 (Ex VAT) R004,12 R004,12. Feet For Leg Set Of 3

$46.86 (Ex VAT) R004,09B R004,09B. Complete Leg Support, Black

$52.50 (Ex VAT) 266 G100-2. Sand Bag

$15.00 (Ex VAT) Art. 013 013. Adaptor Spigot

$116.23 (Ex VAT) R420.10B R420,10B. Top Column with collar and Bushing

$44.67 (Ex VAT) 098.12 R098,12. Ass Lever. ( Pack Of 5 )

$18.81 (Ex VAT) R1004,21 R1004,21. Knob Set Of 3 Pieces

$27.07 (Ex VAT) R1004.14 R1004,14. Assembly Sleeve

$8.41 (Ex VAT) R004,07 R004,07. Brake Shoe ( Set of 1 + 1 ), replaces E004,507Z

$18.71 (Ex VAT) 420.13 R420,13. Washer

$17.55 (Ex VAT) E420.502Z R420,02. Half Shell

$17.55 (Ex VAT) E420,501Z R420,01. Half Shell

$67.64 (Ex VAT) R420.07B R420,07B. Top Combi Boom Section

$31.48 (Ex VAT) R101.1086 R101,1086. Handle. Female

$59.25 (Ex VAT) R420.90 R420,90. Handle Assembly For Lock Joint

$21.46 (Ex VAT) R420.08 R420,08. Safety Lock

$39.50 (Ex VAT) R420.03 R420,03. Right Lock Joint Half Shell

$31.19 (Ex VAT) R420.04 R420,04. Left Lock Joint Half Shell

$32.39 (Ex VAT) 420.11CHB R420,11B. Aluminium Tube Black

$63.00 (Ex VAT) 004.19CHB R004,19CHB. Aluminium Tube 35x1x789 Black

$13.06 (Ex VAT) R1004.34 R1004,34. Assembly Brake Shoe

$8.82 (Ex VAT) E004.508Z R004,08. Brake Shoe, replaces E004,508Z

$28.53 (Ex VAT) R1004.12 R1004,12. Assembly Sleeve

$32.52 (Ex VAT) R004.85 R004,85. Top Spider

$8.41 (Ex VAT) E004.507Z R004,07. Brake Shoe ( Set of 1 + 1 ), replaces E004,507Z

$30.35 (Ex VAT) 004.12 R004,12. Feet For Leg Set Of 3

$46.86 (Ex VAT) R004,09B R004,09B. Complete Leg Support, Black

$29.28 (Ex VAT) R004.86 R004,86. Bottom Spider with knob&rivets

$52.50 (Ex VAT) 266 G100-2. Sand Bag
